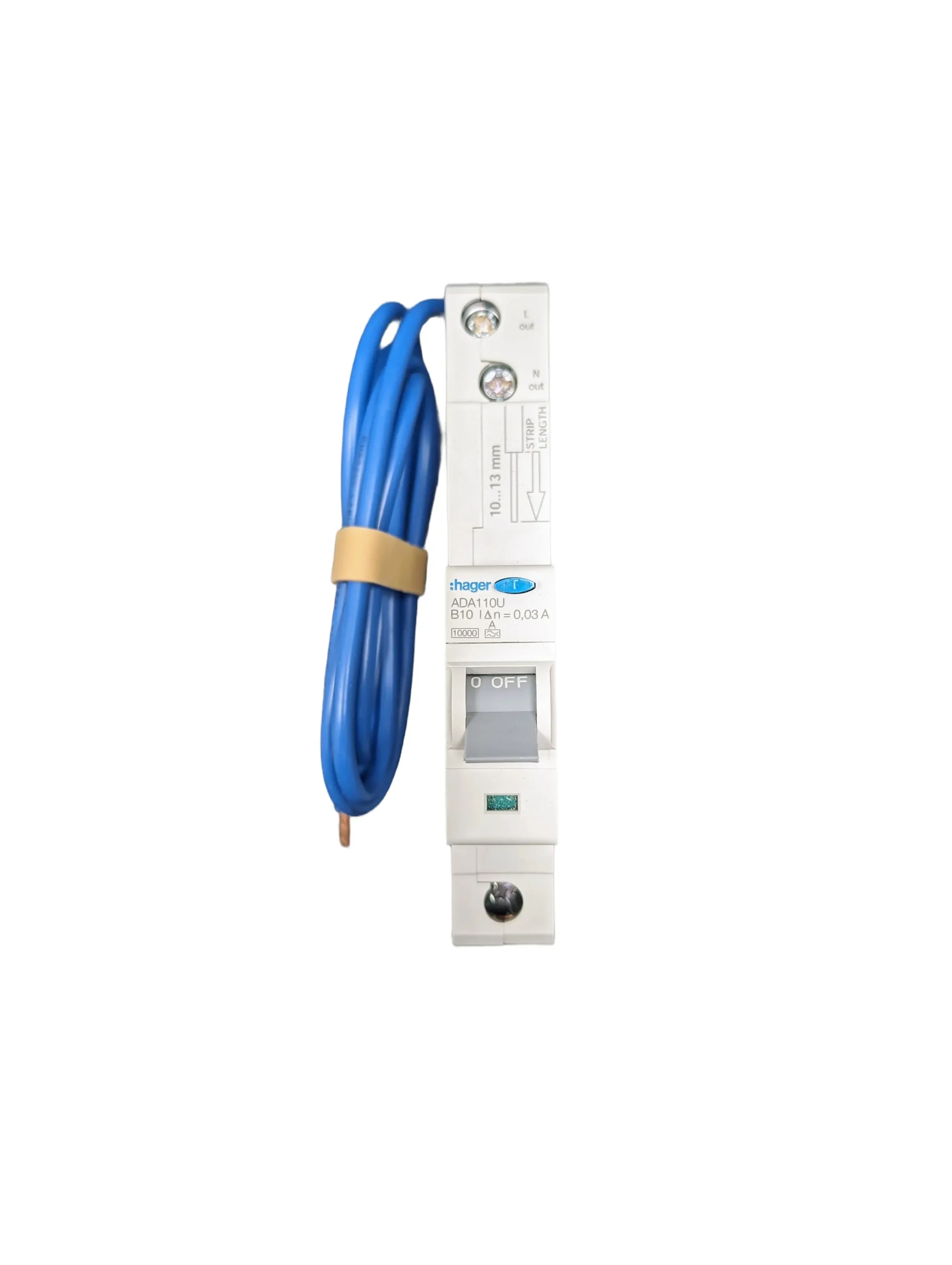

ADA110U – Hager Compact RCBO 10A 30mA 10kA B Curve
£24.00 inc VAT
- One year full guarantee. Fourteen day no questions return.
- Delivery £7.00 ex VAT
- FREE delivery on orders over £120.
- SSL secure transactions
- Call us today for any advice
Product Description
ADA110U – Hager Compact RCBO 10A 30mA 10kA
The ADA110U is a compact RCBO from Hager, designed to provide reliable protection for electrical circuits. Combining overcurrent and residual current protection, this RCBO ensures safety and compliance in residential and commercial electrical installations. With a compact design and robust features, it’s an ideal solution for modern switchboards and consumer units.
Key Features
- Type B Tripping Curve: Suitable for circuits with appliances generating pulsating DC components, such as washing machines and variable speed drives.
- 30mA Tripping Sensitivity: Protects against earth leakage currents, reducing the risk of electric shock.
- 10kA Breaking Capacity: Safely interrupts short-circuit currents up to 10,000 amps.
- DIN Rail Mounting: Allows for quick and secure installation in consumer units or distribution boards.
- Compact Size: Single-module design saves space, making it ideal for compact switchboards.
- Flying Neutral Lead: Simplifies the connection of the neutral conductor for easy installation.
Technical Specifications
- Rated Voltage: 230/240V AC
- Rated Insulation Voltage: 250V
- Maximum Operating Voltage: 253V
- Rated Impulse Withstand Voltage: 4000V
- Pollution Degree: 2
- Enclosure Class: IP20
- Operating Temperature Range: -25°C to +40°C
- Storage Temperature Range: -40°C to +70°C
- Dimensions: 115mm (H) x 17.5mm (W) x 70mm (D)
The ADA110U combines advanced safety features, compact design, and ease of installation, making it an excellent choice for protecting electrical circuits. Trust Hager for high-quality circuit protection devices designed to meet modern safety standards.
