ADA166U – Hager 16A RCBO 30mA 10kA C Curve Type A

Product Description

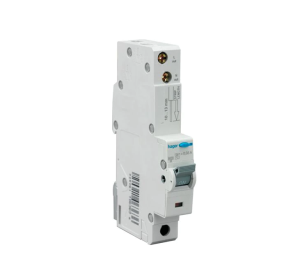

ADA166U – Hager 16A RCBO 30mA 10kA C Curve Type A

The ADA166U is a compact RCBO from Hager, designed to provide reliable protection for electrical circuits with a 16A rated current. Featuring a C Curve and Type A sensitivity, this RCBO is ideal for circuits with moderate inrush currents and is capable of detecting AC and pulsating DC earth leakage currents. It ensures compliance and safety in residential, commercial, and industrial electrical installations.

Key Features

• C Curve Tripping: Suitable for circuits with higher inrush currents, such as fluorescent lighting and motor loads.
• 30mA Tripping Sensitivity: Protects against earth leakage currents, reducing the risk of electric shock.
• Type A Sensitivity: Detects AC and pulsating DC components, making it ideal for modern electrical devices.
• 10kA Breaking Capacity: Safely interrupts short-circuit currents up to 10,000 amps.
• DIN Rail Mounting: Allows for quick and secure installation in consumer units or distribution boards.
• Compact Size: Single-module design saves space, making it ideal for compact switchboards.
• Flying Neutral Lead: Simplifies the connection of the neutral conductor for easy installation.

Technical Specifications

• Rated Voltage: 230/240V AC
• Rated Insulation Voltage: 250V
• Maximum Operating Voltage: 253V
• Rated Impulse Withstand Voltage: 4000V
• Rated Current: 16A
• Tripping Curve: C Curve
• Earth Leakage Sensitivity: Type A (AC and Pulsating DC)
• Pollution Degree: 2
• Enclosure Class: IP20
• Operating Temperature Range: -25°C to +40°C
• Storage Temperature Range: -40°C to +70°C
• Dimensions: 115mm (H) x 17.5mm (W) x 70mm (D)

The ADA166U combines advanced safety features, compact design, and ease of installation, making it an excellent choice for protecting electrical circuits with a 16A rated current. Trust Hager for high-quality circuit protection devices designed to meet modern safety standards.
