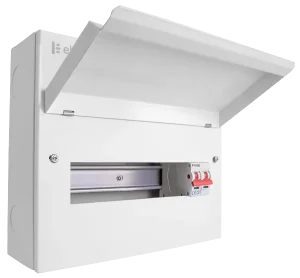

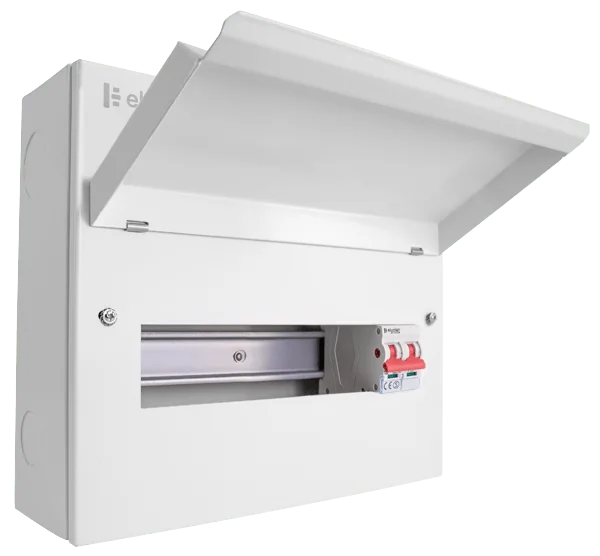

CUEB12MS10 – 12 Way Metal Elucian Consumer Unit with 100A Mains Switch (10 Free Ways)

Product Code: CUEB12MS10 Category:

£45.60 inc VAT


  • One year full guarantee. Fourteen day no questions return.
  • Delivery £7.00 ex VAT
  • FREE delivery on orders over £120.
  • SSL secure transactions
  • Call us today for any advice

Product Description

CUEB12MS10 – 12 Way Metal Elucian Consumer Unit with 100A Mains Switch (10 Free Ways)

The CUEB12MS10 is a premium 12-way metal Elucian Consumer Unit designed with a robust 100A mains switch. Offering 10 free ways, it is perfect for residential and commercial electrical installations, ensuring reliability and durability.

Key Features:

  • Model: CUEB12MS10
  • Total Ways: 12 ways, with 10 free ways
  • Main Switch: Pre-installed 100A mains switch (CU2MS100)
  • Dimensions with Door: 294mm (W) x 260mm (H) x 115mm (D)
  • Enclosure Dimensions: 294mm (W) x 260mm (H) x 92mm (D)
  • Finish: High-quality white (RAL 9003)
  • Material: Powder-coated steel enclosure and cover, galvanised steel DIN rail
  • Rated Voltage: 230V~
  • Frequency: 50/60Hz
  • Max Rated Current: 100A
  • Device Terminals: Screw-type lugs and pin connectors for secure installation

This consumer unit is designed for easy installation and comes with durable materials that meet the highest safety standards, making it ideal for new electrical projects or upgrades.
