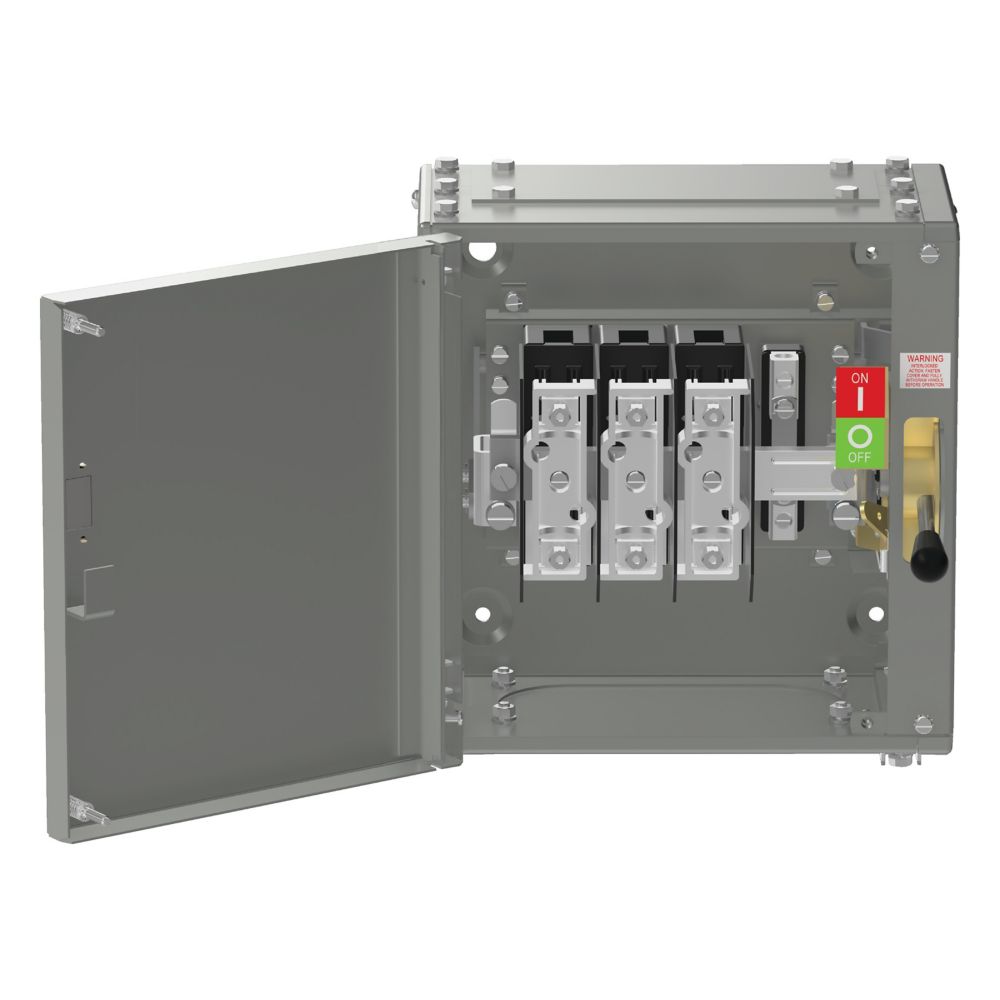

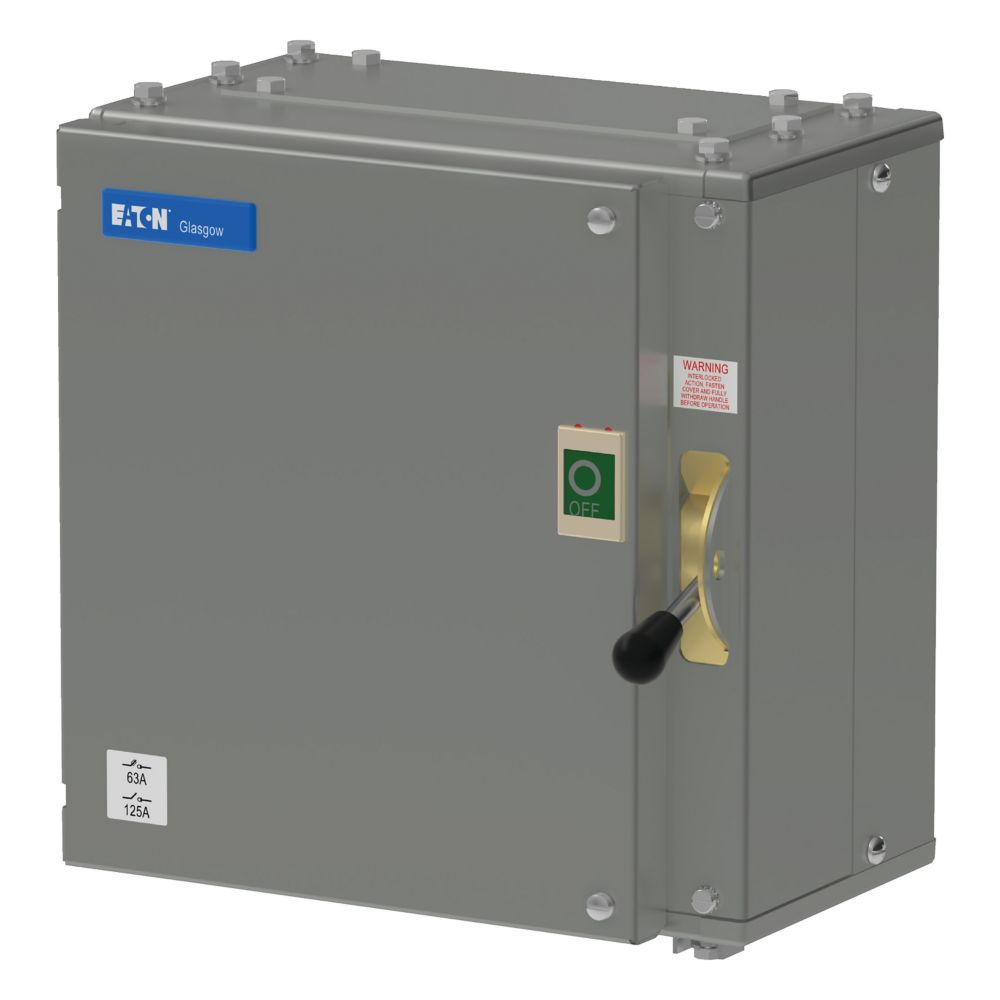

63GN Eaton Glasgow 63A TP+N Fuse Switch Disconnector

63GN Eaton Glasgow 63A TP+N Fuse Switch Disconnector: Reliable Power Control

Ensure safe and efficient power management with the Eaton Glasgow 63A TP+N Fuse Switch Disconnector. This robust unit is ideal for industrial environments, providing reliable performance and enhanced safety features, built to meet tough demands.

Key Features:

• Durable Construction: Designed to withstand tough industrial conditions with a cylindrical fuse insert design and a compact housing.
• Safety First: Neutral makes first and breaks last for optimal protection, with four-pole operation to ensure complete circuit control.
• Lockable Mechanism: Prevents unauthorised access, ensuring secure operation.
• Degree of Protection: Rated at IP40, providing solid protection against dust and small objects in industrial environments.

Versatile Compatibility: Compatible with various Eaton fuses and solid links (sold separately). See also the larger 103GN 100A version for higher-rated applications.

Technical Specifications:

• Part Code: 63GN
• Current Rating: 63A
• Voltage Rating: 415V (Max. Rated Operating Voltage)
• Rated Insulation Voltage: 660V
• Number of Poles: Four-pole (TP+N)
• Standards: BS EN 60947-3
• Dimensions: (H) 301 mm x (W) 269 mm x (D) 193 mm
• Weight: 7.91kg
• Degree of Protection: IP40
• EAN: 9010238196117
• Replaces: 63GNC
