ALUP/2/BK – Ansell Luppa LED CCT Bulkhead Black – 13W/23W, IP66

ALUP/2/BK — Ansell Luppa LED CCT Bulkhead, Black

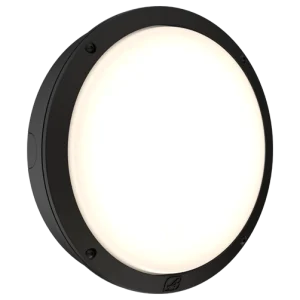

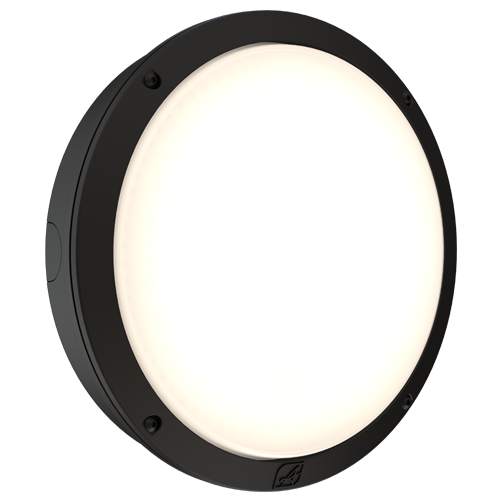

The Ansell Luppa is a 298mm die-cast aluminium round bulkhead with an opal polycarbonate diffuser, rated IP66 and IK08 for exposed external and heavy-duty internal use. Integral switches let the installer select both output (13W or 23W) and colour temperature (3000K or 4000K) on site, so a single stock item covers a wide range of applications.

Supplied with a removable eyelid trim, the Luppa can be installed as a plain full-round bulkhead or with the eyelid fitted for a downward light bias. An integrated LED board switch isolates the shrouded section when the eyelid is in place, so no energy is wasted lighting the inside of the trim. This makes it the direct replacement for the discontinued Ansell Nappa and Lucca ranges — same 298mm diameter, same die-cast body and tamperproof fixings, with both housing styles now covered by one product.

Key Features:

• Power Select — 13W or 23W chosen on site via integral switch
• Colour Select — 3000K or 4000K chosen on site via integral switch
• Removable eyelid trim gives both plain and shrouded installation options
• Integrated LED board switch isolates the eyelid section to maintain efficiency
• Base-first install with diffuser-mounted gear tray and removable conduit entries
• Built-in spirit level for accurate alignment
• Tamper-proof stainless steel allen key screws
• XPRESS compatible — emergency, photocell and corridor function can be clipped in on site
• IP66 and IK08 rated die-cast aluminium construction
• Up to 140lm/W with an L80 72,000 hour lifetime and 7 year warranty

Technical Specifications:

• Wattage: 13W / 23W (switchable)
• Lumen Output: 1750lm / 3200lm (4000K)
• Efficacy: 135lm/W – 140lm/W (4000K)
• Colour Temperature: 3000K / 4000K (switchable)
• CRI: 80 (SDCM 3)
• Beam Angle: 107°
• Input: 220-240V, 50/60Hz
• IP Rating: IP66
• IK Rating: IK08
• Class Protection: Class 1
• Dimensions: Ø298mm x 99mm (diameter x depth)
• Operating Temperature: -20°C to 40°C
• Lifetime: L80 72,000 hours
• Dimming: Non-dimmable as standard (/DD digital dimming versions available)
• Warranty: 7 years

Also available in grey (ALUP/2/GR) and white (ALUP/2/WH), and with emergency (/SM3, /DM3), photocell (/PC), microwave sensor (/MWS), digital dimming (/DD) and OCTO smart control (/OCTO) options. Please contact us for these variants.
