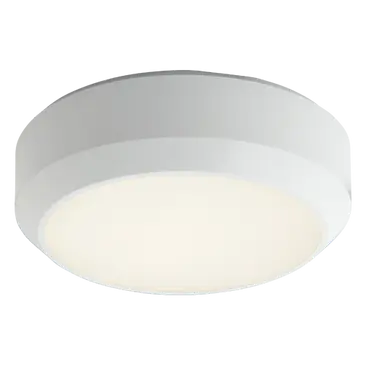

Ansell Delta CCT Microwave Sensor LED Bulkhead – White (ADLED2/WV/CCT/MWS)
£36.00 inc VAT
- One year full guarantee. Fourteen day no questions return.
- Delivery £7.00 ex VAT
- FREE delivery on orders over £120.
- SSL secure transactions
- Call us today for any advice
Product Description
The Ansell Delta CCT 2 Microwave Sensor LED Bulkhead in black is a robust, all-polycarbonate luminaire designed for commercial, industrial, and outdoor applications. Featuring an integrated microwave sensor and selectable colour temperature, it delivers reliable, energy-efficient lighting with excellent installation flexibility.
Finished in a durable black housing with a high-performance Visiluxe diffuser, this bulkhead achieves up to 90% light transmission from the LED source for improved illumination and reduced glare. An optional trim attachment is supplied, allowing a more refined, professional appearance where required.
Key Features
- Integrated microwave sensor for automatic, energy-efficient lighting control
- Internal CCT selector switch allowing 3000K, 4000K or 5700K selection
- High-efficiency LED delivering up to 1700 lumens at 4000K
- Excellent efficacy up to 140 lm/W for reduced running costs
- Instant light output with unlimited switching capability
- Push-fit loop-in / loop-out terminals for fast, simple installation
Technical Information
- Wattage: 7.5W – 12.5W
- Luminous Flux: 1000lm / 1700lm (4000K)
- Beam Angle: 115°
- CRI: Ra ≥80
- Voltage: 220–240V AC
- IP Rating: IP65
- IK Rating: IK08
- Class Protection: Class II
- Operating Temperature: -10°C to +40°C
- L80 Lifetime: 60,000 hours
- Diameter: 285mm
Applications
- Commercial corridors and stairwells
- Education and healthcare facilities
- Industrial and ancillary areas
- External entrances and walkways
- Plant rooms and service areas
Compatible Accessories
- ADLED2/BZ/EYE/B – Eyelid bezel trim (Black)
- ADLED2/BZ/EYE/W – Eyelid bezel trim (White)
- ADLED2/BZ/GRILL/B – Louvred bezel trim (Black)
- ADLED2/BZ/GRILL/W – Louvred bezel trim (White)
Suitable for wall or ceiling mounting in internal and external locations, the Ansell Delta CCT 2 microwave sensor bulkhead is a dependable, long-life lighting solution, supplied with a 5-year manufacturer’s warranty.
