CEFL-PIR – Danlers Ceiling Flush Mounted Pir Occupancy Switch

CEFL-PIR – Danlers Flush Mounted Ceiling PIR Occupancy Switch

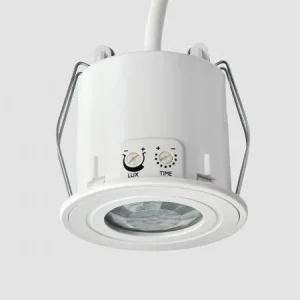

The Danlers CEFL-PIR is a flush mounted ceiling PIR occupancy switch for suspended and plasterboard ceilings. It needs only a 63mm or 64mm clearance hole and comes with a 2 metre connecting flex for quick, tidy installation. A passive infra-red quad sensor detects movement, and a built-in photocell stops the lights switching on when there is enough daylight.

Key Features:

• Flush mounts in suspended and plasterboard ceilings, with spring clips that can be folded away or opened out
• 2 metre connecting flex supplied, with a terminal block
• Time lag adjustable from 10 seconds to 40 minutes in 9 steps
• Lux level adjustable from approximately 30 to 1000 lux, or photocell inactive
• Detection up to 5m (strong zone) and 7m (secondary zone), best at a mounting height of 2.4 to 5m
• Switches up to 6A resistive and fluorescent loads, and suits most energy saving lamps, LEDs and emergency fittings (minimum load 2W)
• Made in the UK with a 5 year manufacturer’s warranty

Technical Specifications:

• Supply: 220-240V AC 50Hz
• Resistive loads: 6A (1500W)
• Fluorescent loads: 6A (1500W)
• Electronic and wire wound transformers: 6A (1500W)
• LED drivers and LED lamps: 3A
• CFL and 2D lamps: 2A (500W)
• Fans: 1A (250W)
• Dimensions: 72 x 72 x 68mm
• Weight: 246g (unpacked)
• IP Rating: IP20, built-in Class 2
• Finish: Matt white (RAL 9003) flame-retardant polycarbonate
• Ambient temperature: -20 to +40°C
• Standards: BS EN 60669-2-1, BS EN 55015, WEEE and RoHS compliant

Also available from Danlers: CEFLPPIR (with Klik-AX plug), CEFLPIR10A (switches 10A resistive loads), CEFLPIRSEALED (suitable for bathroom zones 2 and 3) and CEFLAPIR (absence switch). See our other Danlers PIR sensors for more options.
