Product Code: PKM-160-0770 Category:

£275.40 inc VAT

  • One year full guarantee. Fourteen day no questions return.
  • Delivery £7.00 ex VAT
  • FREE delivery on orders over £120.
  • SSL secure transactions
  • Call us today for any advice

Product Description

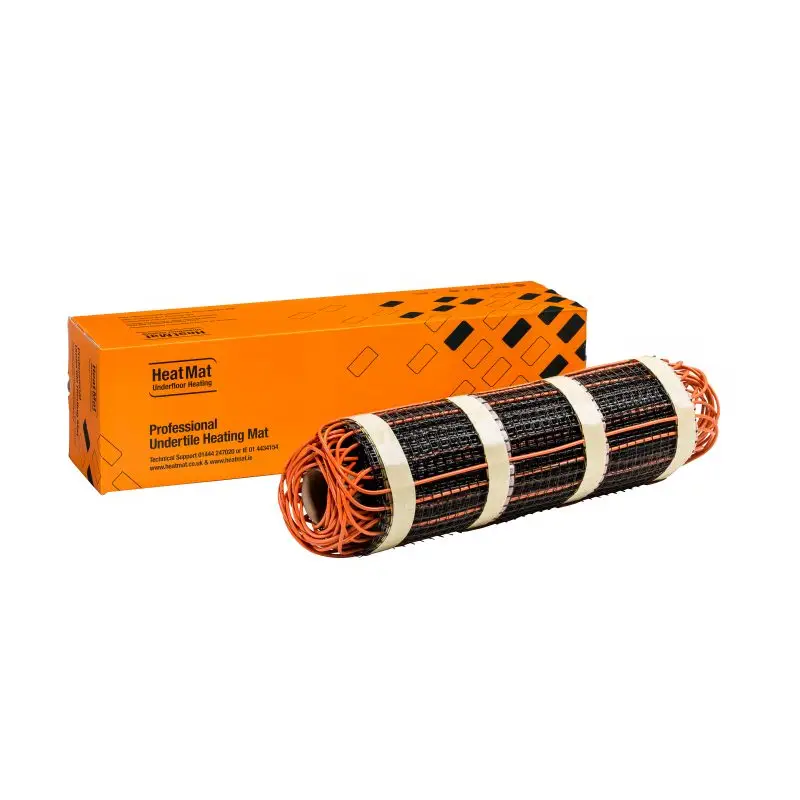

A professional fast-to-fit system designed to provide energy efficient floor warming in all rooms, and a full heating system in well insulated areas. This award winning electric underfloor heating mat range has the additional benefit that it can be used beneath virtually any type of floor covering if covered with a levelling compound, ensuring luxurious warm floors whatever your chosen floor finish.

160W mats offer a versatile and fast reacting underfloor heating system which is very simple to operate when used in conjunction with Heat Mat’s 4th generation NGT thermostat.

  • Designed to provide floor warming in all rooms and sole source heating in well insulated areas
  • Integrated earth shield (unlike carbon films), allowing safe installation in wet areas including bathrooms
  • Ideal for tiled floors, and also perfect for use beneath carpet, bonded wood and vinyl surfaces if first covered with a levelling compound
  • General Construction: Dual conductor wire with earth
  • Supply Voltage: 240V
  • Power Output: 160W/sqm
  • Output Range for 200W mats: 179W-1700W
  • Maximum Load: 17W/m
  • Standard Range: 1.1m2 – 10.4m2
  • Mat Dimesnions: 0.5m wide x 2.2m to 20.8m
  • Maximum Cable Temperature: 90 °C
  • Approvals: CE Marked and BEAB system approved
  • Wire Thickness: 2.7mm to 3.2mm depending on Ohm Value
  • Cable Flexibility: Minimum allowable cable radius is 18mm
  • Power Range: 168W to 1973W
  • Approved in accordance with: EN 60335-1:1998, EN60335-2-17:1999, IEC 60730
  • IP Rating: IPX7
