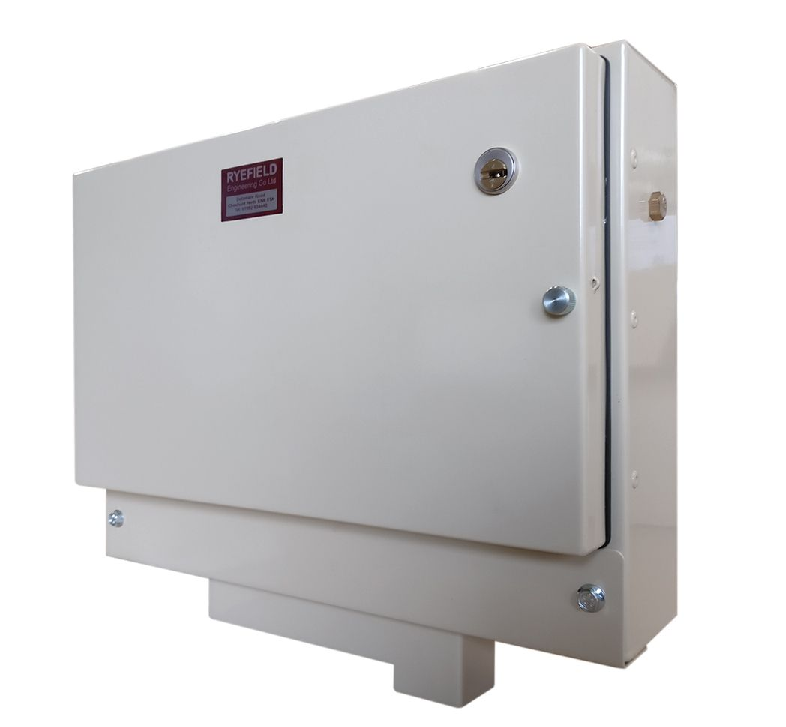

SHT1004/60 PME-SNE – Ryefield 4-Way 60A Distribution Board

Product Description

Ryefield 4-Way 60A Distribution Board SHT1004/60 PME/SNE – Compact and Reliable Power Distribution for Multi-Unit Properties

The Ryefield 4-Way 60A Distribution Board (model SHT1004/60 PME/SNE) is an efficient solution for power distribution in smaller multi-dwelling buildings. Designed to be installed above a 100A three-phase service head, this unit ensures safe and secure electrical distribution. Ideal for multi-unit residential properties, it offers durability and ease of installation.

Key Features:

• 4-Way Design: Accommodates 60A service fuse units, perfect for smaller setups in multi-dwelling units.
• Durable Construction: Fabricated from 18-gauge sheet steel, stove-enameled in light straw RAL 1014 for enhanced durability and a professional finish.
• Secure Access: Equipped with a lift-off hinged cover, Mul-T-Lock system, captive set screws, and sealing provisions for safe access.
• Versatile Connections: Includes standard brass 35mm adjustable clamps and brass neutral and earth blocks with pinch-screw terminals for flexible conductor connections.
• Easy Installation: Four 25mm knockouts in the top allow for straightforward SPN outgoing circuit connections, simplifying installation.
• Enhanced Safety: Bakelite fillets between phases provide additional insulation and safety.
• High Capacity: The busbar is rated at 400A, ensuring robust power distribution for residential setups.
• Compact Dimensions: Case size of 350mm H (including 50mm coupler) x 400mm W x 120mm D fits easily into various installations.

This Ryefield 4-Way 60A Distribution Board is the perfect choice for managing power in smaller residential projects.

Finish:

• Casework is stove-enameled in a light straw RAL 1014 for a professional finish.
• Steel screws and components are zinc-plated for enhanced corrosion resistance and durability.
