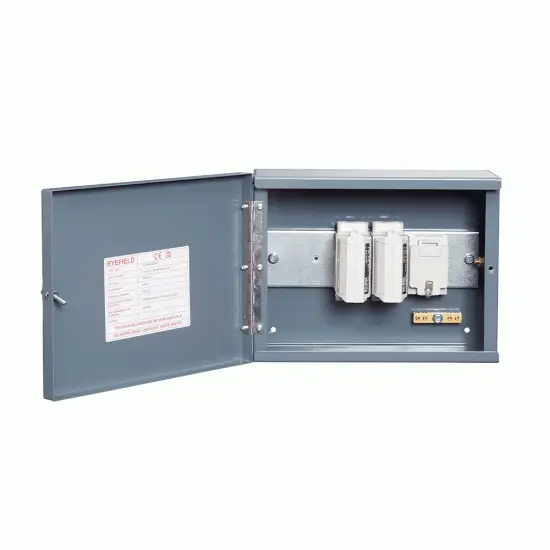

CO60DPN – Ryefield 2 Way Distribution Board with 60A Fuse Units Cut Out Box

Product Description

CO60DPN – Ryefield 2 Way Distribution Board with 60A Fuse Units Cut Out Box | Your Electrics

The CO60DPN is a high-quality Ryefield 2 Way Distribution Board, complete with 60A fuse units. This robust and reliable sealable cut-out box is designed to distribute power from the main cut-out to dwelling meters, making it an ideal choice for multi-dwelling residential settings. Manufactured to the highest standards, this 2-phase sealable cut-out box offers excellent performance and durability.

Key Features

• 2 Way Configuration: Equipped with 2 circuits, each fitted with a 60A Series 7 fuse unit for independent circuit protection.
• Durable Construction: Made from 18-gauge steel sheets with a powder-coated enamel finish in Dark Grey Shade BS632 for enhanced durability and corrosion resistance.
• Busbar Capacity: Standard busbar with a maximum current rating of 400A for reliable power distribution.
• Cable Clamp: Adjustable main brass clamps designed to accept up to 35mm² stranded conductors.
• Compact Design: Dimensions: 229mm (H) x 305mm (W) x 114mm (D), making it easy to install in limited spaces.
• Sealable Design: Sealable cut-out box for added security and compliance with regulations.
• Multi-Application: Suitable for use with metering equipment in HMOs and other residential or commercial multi-unit buildings.

Technical Specifications

• Model: Ryefield Engineering CO60DPN
• Voltage: 240/415V
• Frequency: 50Hz
• Current Rating: 60A per circuit
• Weight: 5kg
• Material: Enamel-coated 18g steel with zinc-plated screws and components
• Neutral Clamp: Pinching screw circuit terminals, one per fuse unit

Installation Notes

We recommend using a registered electrician for the installation of this Ryefield board to ensure compliance with electrical safety standards. The board is pre-drilled and embossed for secure wall mounting.

Important Information

Before purchasing, please ensure this is the correct Ryefield Board for your application. This product is subject to a 14-day returns policy for unwanted items, with refunds issued for the value of the item only. Due to its size and weight, a carriage charge of £15 will be automatically added at checkout.

Looking for a 3-way version? Click here to view the Ryefield CO60TPN 3 Way Distribution Board.

Order the Ryefield CO60DPN 2 Way Distribution Board today and benefit from reliable, cost-effective power distribution for your multi-dwelling installation needs.
