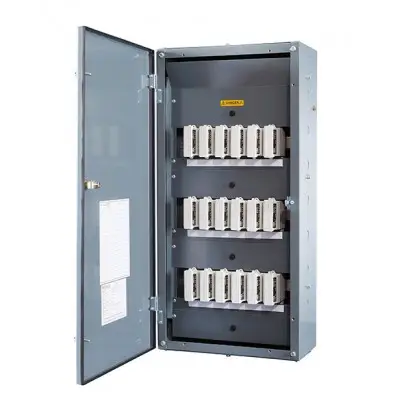

TP18AVS/100 – 18 Way Ryefield Board, 100A Vertical Three Phase Distribution Board
£2,340.00 inc VAT
- One year full guarantee. Fourteen day no questions return.
- Delivery £7.00 ex VAT
- FREE delivery on orders over £120.
- SSL secure transactions
- Call us today for any advice
Product Description
Ryefield TP18AVS/100 – 18 Way Three Phase Distribution Board with 100A Fuses
The TP18AVS/100 is a robust three-phase vertical distribution board from Ryefield Engineering, designed to provide 18 single-phase outgoing ways—ideal for residential developments, flats, or HMOs where separate metering is required.
- Constructed from 1.2mm (18g) steel sheet, powder-coated in dark grey (BS381C 632)
- Lift-off hinged cover with padlocking attachment and Multilock mechanism
- Retrofit surge-ready design for 18th Edition compliance
- Wall-mountable back case, drilled and embossed for easy installation
- Standard main brass clamps adjustable for 25mm²–120mm² stranded conductors
- Brass earth block with PME link and pinching screw terminals
- One neutral clamp per fuse unit with pinching screw terminals
- Supplied with 18 x 100A service type fuse units
- TPN pattern: 6/6/6 combination across phases L1/L2/L3
- Busbar rated at 400A maximum, fused short circuit current 50kA at 415V
- Dielectric tested to 2.5kV for 1 minute
- Plain removable gland plates at top and bottom
- Dimensions: 815mm (H) x 400mm (W) x 180mm (D)
This unit provides reliable power distribution for up to 18 separately metered circuits, commonly used in multi-occupancy buildings and approved by DNOs for LV applications.
