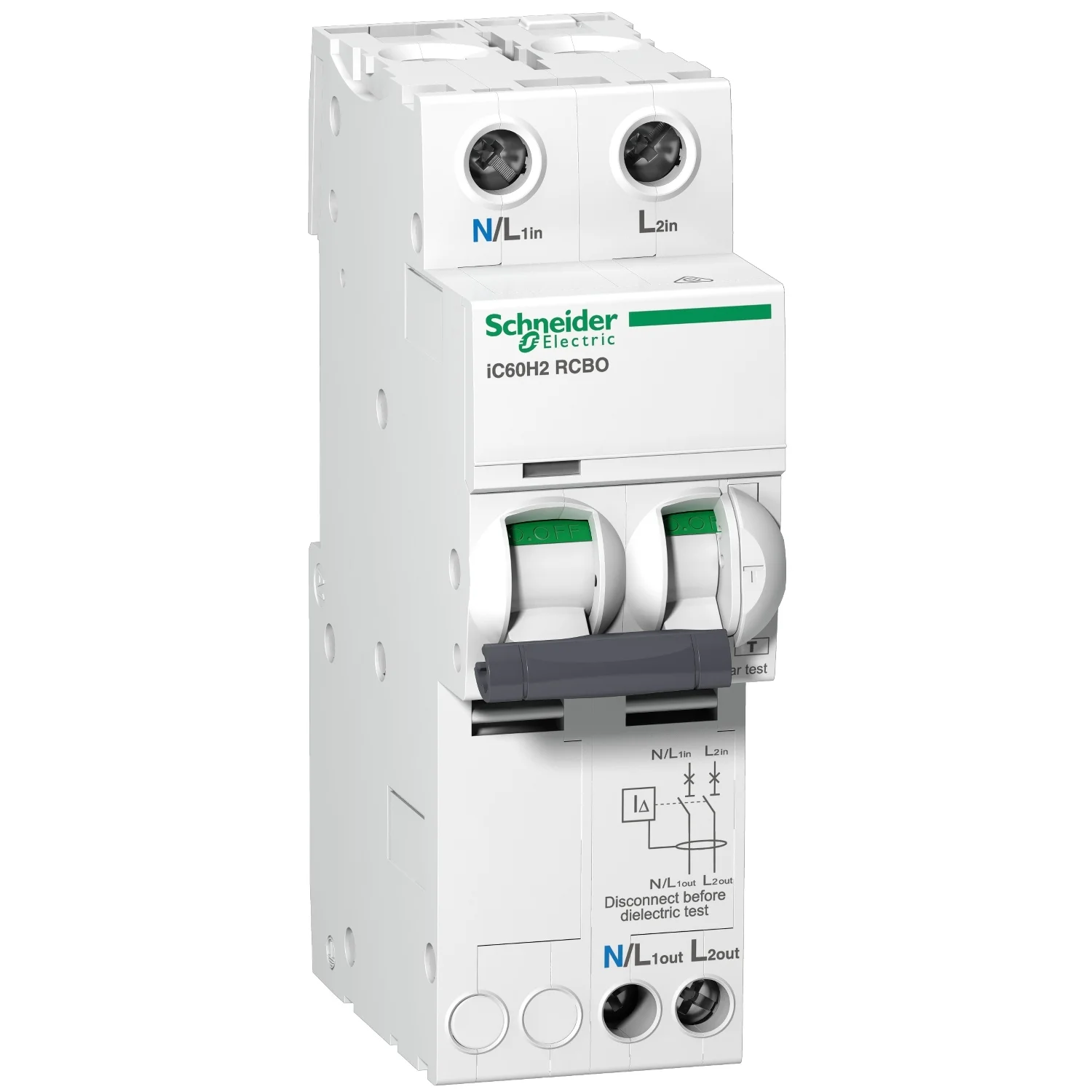

Schneider Acti9 iC60H2 RCBO 2P 20A C Curve 30mA 110V (A9D19220)
The Schneider Electric Acti9 iC60H2 A9D19220 is a 2-pole RCBO (residual current breaker with overcurrent protection) rated at 20A with a C curve trip characteristic and 30mA earth leakage sensitivity. It is designed for 110/130V systems, making it a popular choice for site supplies, temporary installations, workshops and other reduced low voltage circuits where additional protection against electric shock is required.
An RCBO combines the functions of a miniature circuit breaker (MCB) and an RCD in one device. Each circuit is protected individually against overload, short circuit and earth leakage, so a fault on one circuit trips only that circuit and the rest of the board stays live. This is the same Acti9 iC60 build quality that Schneider Electric is known for, with a clear toggle, integral test button and visible fault indication.
Key Features
- 2 pole RCBO combining overcurrent and earth leakage protection in a single device
- 20A rated current with a C curve, suitable for general circuits and loads with moderate inrush
- 30mA residual current sensitivity for additional protection against electric shock
- Type A earth leakage detection, 10kA breaking capacity
- Rated for 110/130V systems
- Compact 36mm wide DIN rail mounting, with an integral test button
Technical Specifications
- Manufacturer: Schneider Electric
- Range: Acti9 iC60 (iC60H2)
- Catalogue number: A9D19220
- EAN: 3606480558696
- Poles: 2P
- Rated current: 20A
- Curve: C
- Sensitivity: 30mA
- Voltage: 110/130V
- Dimensions: 36 x 110 x 75.5mm (W x H x D)
- Weight: approx. 332g
- Protection degree: IP20
The A9D19220 is supplied by Your Electrics at trade prices, with fast UK delivery. It is part of our wider range of Schneider Acti9 RCBOs and Schneider Acti9 single phase distribution products. Please check the full datasheet before installation and always have protective devices fitted by a competent person. Full technical details are on the Schneider Electric A9D19220 product page.
