TMF400 – Lawson 400 Amp BS88 Industrial HRC Fuse Link
£34.80 inc VAT
- One year full guarantee. Fourteen day no questions return.
- Delivery £7.00 ex VAT
- FREE delivery on orders over £120.
- SSL secure transactions
- Call us today for any advice
Product Description

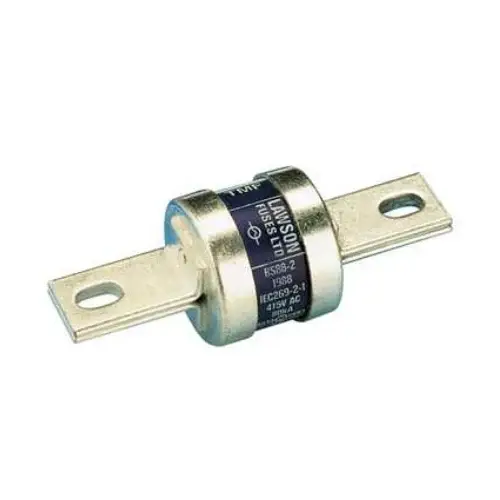

Lawson TMF400 – 400A HRC Fuse Link 415V
The Lawson TMF400 is a high-performance 400A HRC (High Rupture Capacity) fuse link designed for industrial installations. Manufactured by Lawson Fuses, this fuse offers robust and reliable protection for general industrial applications. It is compatible with BS88 bolted fuse-holders and distribution fusegear. Rated for use at 415V a.c., it provides a breaking capacity of 80kA at 415V a.c. and 40kA at 250V d.c., ensuring compliance with BS88 standards for high-current systems.
Dimensions
- Overall Length: 137mm
- Fixing Centres: 111mm
- Height: 60mm
- Width: 60mm
Designed for use in 415V a.c. systems, the Lawson TMF400 meets the rated voltage and test requirements, making it suitable for systems with voltages up to 457V a.c. It features centre bolted tags for secure connections and fits the 403GN Eaton Glasgow TP+N 400A Switch-Disconnector, providing reliable and efficient protection in industrial environments.
Key Specifications
- Amperage Rating: 400A
- Voltage Rating: 660V (AC/DC)
- Breaking Capacity: 80kA
- Class: gG/gL
- Fuse Size: BS88/B4
The Lawson TMF400 is a trusted solution for industrial electrical systems, ensuring compliance, safety, and reliability. Available now from Your Electrics.
