20 Way Ryefield Board TP20AHS/100 – Three Phase Distribution Board with 100A Fuse Units
TP20AHS/100 is a 20-way single-phase distribution board with a three-phase supply, designed for durability and ease of installation in commercial or industrial applications.
- Dimensions (HxWxD): 535 x 860 x 180mm
- Comes complete with 20 x 100A fuses for immediate use
- TPN pattern: 7/6/7 combination across phases L1/L2/L3
- Fabricated from robust 18g steel sheets for long-lasting durability
- Lift-off hinged covers with padlock attachment and multilock for added security
- Adjustable main brass clamp to accept 25-120mm stranded conductors
- Plain removable top and bottom plates for flexible installation
- Back cases pre-drilled and embossed for easy wall mounting
- Maximum busbar rating of 400A for reliable high-capacity electrical distribution

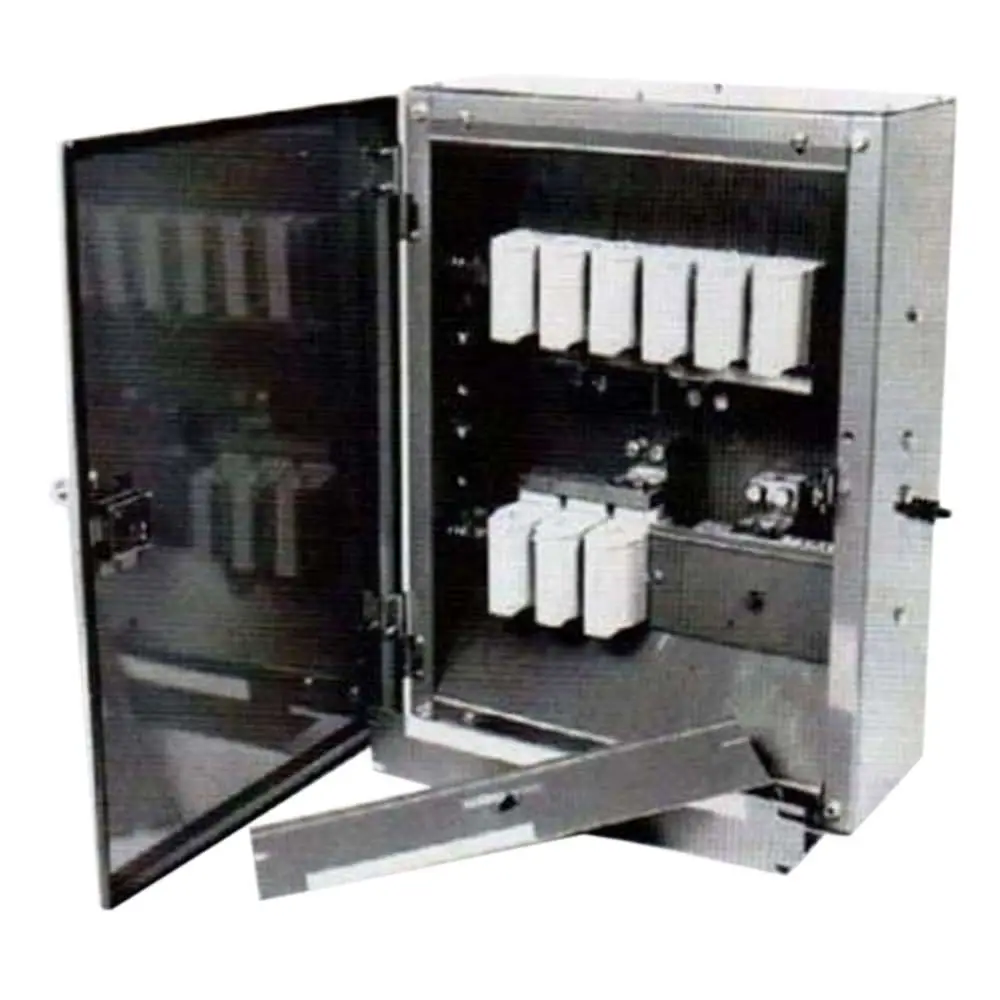

Note: The photo is for illustrative purposes only. Please check the product dimensions and specifications to ensure they meet your installation needs.
A Ryefield board is a distribution board manufactured by Ryefield Engineering, available through Your Electrics, ensuring safe and efficient power distribution in high-demand applications.
Related Product: If you require a similar board with 60A fuses, consider the TP20AHS/60 model.
