TP6AHS/100 – 6 Way Ryefield Board – Three Phase Distribution Board (100A Fuse Units)

Product Description

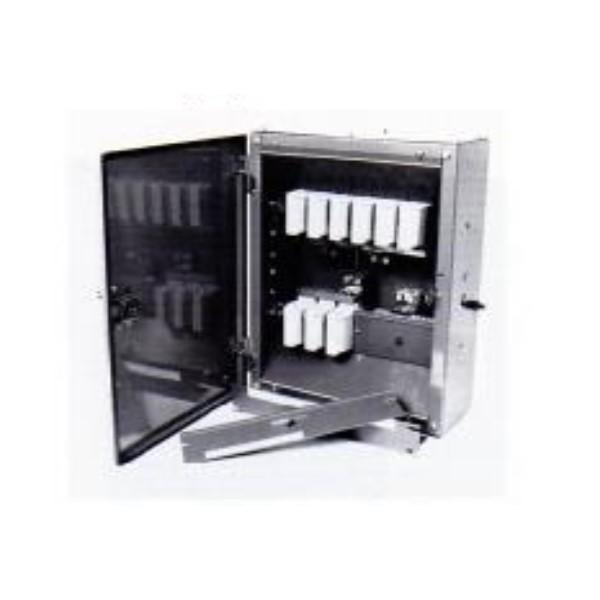

6 Way Ryefield Board TP6AHS/100 – Three-Phase Distribution Board with 100A Fuse Units

The TP6AHS/100 is a 6-way single-phase distribution board designed for use with a three-phase supply, built for durability and ease of installation in commercial or industrial applications. This unit is fully compliant with 18th Edition regulations and comes ready for high-capacity electrical distribution.

• Dimensions (HxWxD): 535 x 400 x 180mm
• Retro-fit surge protection ready for 18th Edition compliance.
• Fabricated from 1.2mm² steel sheets (approx. 18-gauge), powder-coated for long-lasting durability.
• Lift-off hinged covers with padlock attachment and Mul-T-Lock for enhanced security.
• Adjustable main brass clamp to accept 25mm² to 120mm² stranded conductors.
• Brass neutral with a main clamp and pinching screw terminals, one per fuse unit.
• Brass earth block with pinching screw terminals and PME link for earthing.
• Plain removable top and bottom gland plates for flexible installation.
• Back of the case pre-drilled and embossed for easy wall mounting.
• Busbar rated up to 400A for reliable high-capacity electrical distribution.
• Supplied with 6 x 100A fuses for immediate use, with a maximum short circuit current rating of 50kA at 415V.

Additional Features:

• Case finish: Powder-coated Dark Grey Shade BS381C 632 Full Gloss.
• Internal parts made from galvanized steel, fixings zinc-plated for corrosion resistance.
• Dielectric test rated at 2.5kV for 1 minute.
• Optional Extras: LG3 clamps for up to 240mm² conductors, double-bored clamps for looped conductors, special earth, and fuse combinations available.

This 6-way distribution board offers robust performance and flexibility, making it ideal for commercial and industrial electrical distribution needs.
