92190 – BEG Luxomat PD3N-1C-SM 360° PIR Presence Detector, Surface Ceiling, 2300W, IP44, White

92190 — BEG Luxomat PD3N-1C-SM 360° PIR Presence Detector

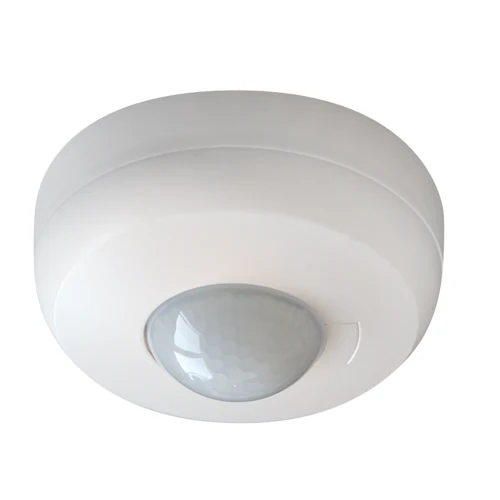

The BEG Luxomat PD3N-1C-SM (92190) is a surface-mounted 360° PIR presence detector for automatic lighting control where a recessed fitting isn’t possible. With IP44 protection, one switching channel rated at 2300W (800W LED) and a detection range of up to Ø10m (78m² at 2.5m), it suits corridors, staircases, toilets and plant rooms. It is remote-control capable for extra functions.

Key Features:

• Surface mounting — no ceiling cut-out required
• IP44 protection for damp-prone areas such as toilets and plant rooms
• 360° detection with a monitored area of 78m² at 2.5m mounting height
• Special optical system detects even the smallest movements
• One lighting channel with zero-crossing switching
• 2300W (cos φ = 1) / 1150VA (cos φ = 0.5) / 800W LED, with a tungsten pre-make contact for high inrush LED loads
• Adjustable light threshold 10–2000 lux and follow-up time 15s–30min; factory settings 500 lux and 10 minutes
• Manual switching via push-button; extra functions with the optional remote control

Technical Specifications:

• Product Code: 92190 (PD3N-1C-SM)
• EAN: 4007529921904
• Supply Voltage: 110–240V AC, 50/60Hz
• Power Consumption: approx. 0.5W
• Switching Power: 2300W (cos φ = 1), 1150VA (cos φ = 0.5), 800W LED
• Contact: 1 × µ-contact, NO, tungsten pre-make
• Max. Inrush Current: 165A (20ms) / 800A (200µs)
• Channels: 1 (lighting)
• Detection Angle: 360°, ceiling mounting

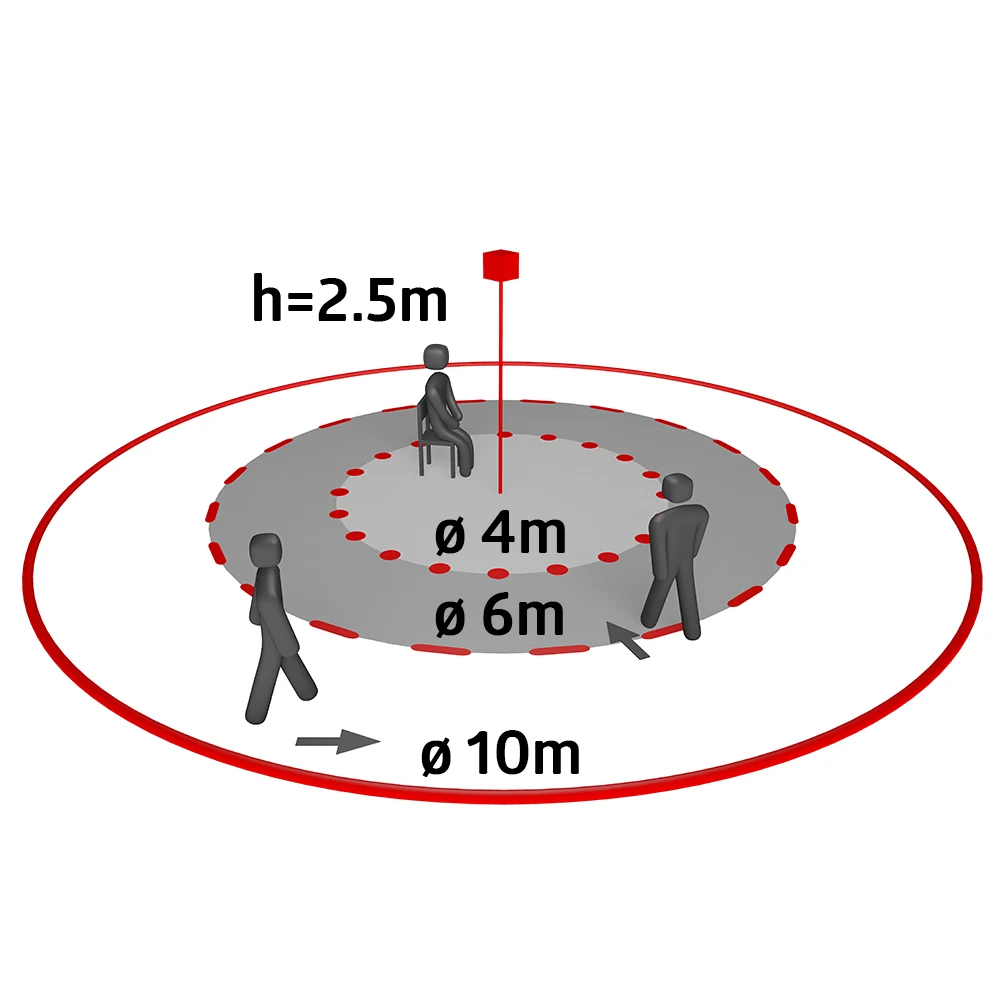

• Range: Ø10m across, Ø6m towards, Ø4m seated
• Monitored Area: 78m² at 2.5m height
• Mounting Height: 2m min. / 2.5m recommended / 5m max.
• Light Threshold: 10–2000 lux
• Follow-up Time: 15 seconds – 30 minutes
• IP Rating / Class: IP44 / Class II
• Impact Rating: IK04
• Ambient Temperature: −25°C to +50°C

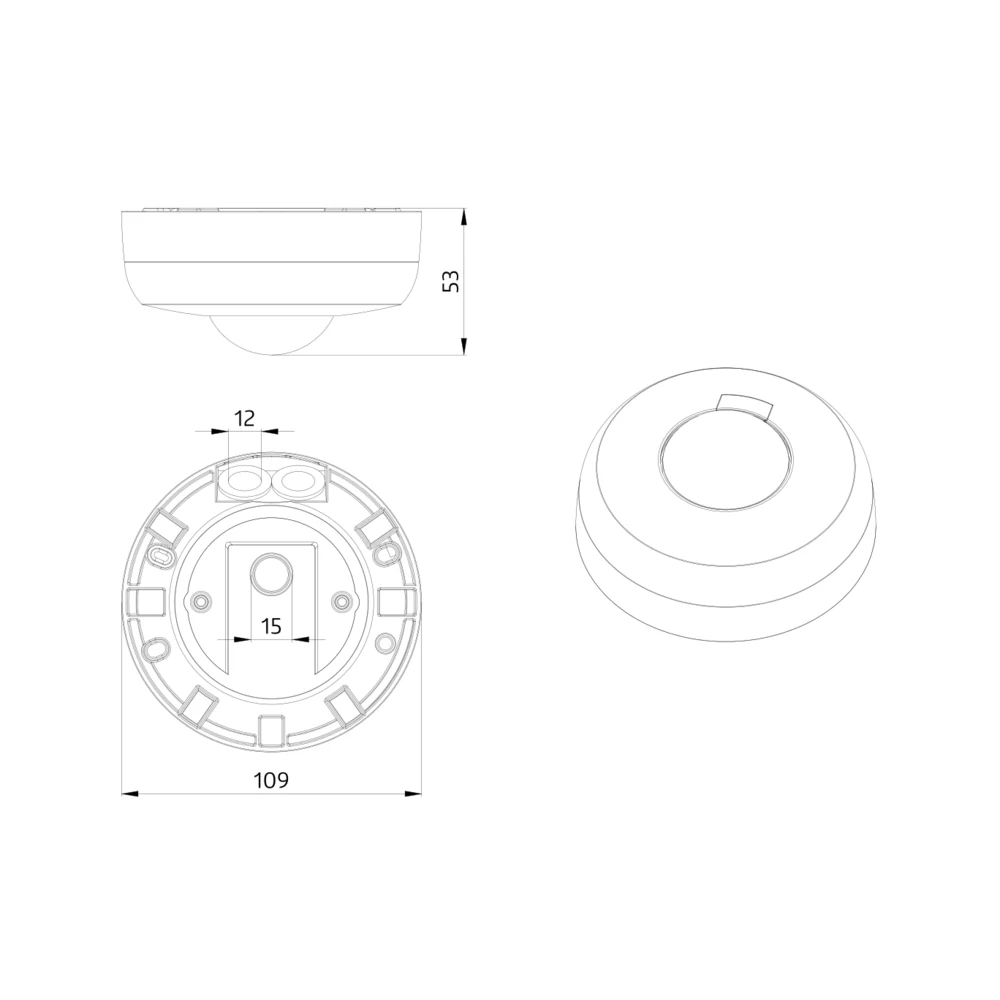

• Dimensions: Ø 106 × 53mm
• Housing: UV-resistant polycarbonate, white matt (similar to RAL 9010)

Typical applications: Corridors, staircases, toilets and equipment rooms.

Other mounting styles in the BEG Luxomat presence detector range: 92196, 92902.
