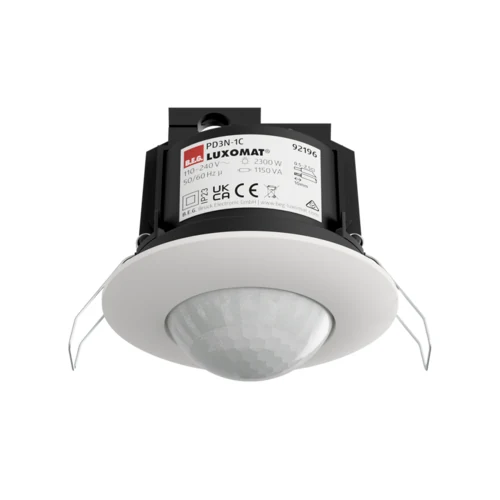

92196 — BEG Luxomat PD3N-1C-FC 360° PIR Presence Detector
The BEG Luxomat PD3N-1C-FC (92196) is a recessed, flush-mounting 360° PIR presence detector for automatic lighting control in ceilings. With one switching channel rated at 2300W (800W LED), a detection range of up to Ø10m and a 78m² monitored area at 2.5m mounting height, it suits corridors, staircases, toilets and plant rooms. It is remote-control capable for extra functions.
Key Features:
- 360° detection with a monitored area of 78m² at 2.5m mounting height
- Special optical system detects even the smallest movements
- One lighting channel with zero-crossing switching
- 2300W (cos φ = 1) / 1150VA (cos φ = 0.5) / 800W LED, with a tungsten pre-make contact for high inrush LED loads
- Adjustable light threshold 10–2000 lux and follow-up time 15s–30min
- Factory settings 500 lux and 10 minutes — works straight out of the box
- Manual switching via push-button; extra functions with the optional remote control
- Parallel detector circuits can be wired together without interruption
Technical Specifications:
- Product Code: 92196 (PD3N-1C-FC)
- EAN: 4007529921966
- Supply Voltage: 110–240V AC, 50/60Hz
- Power Consumption: approx. 0.5W
- Switching Power: 2300W (cos φ = 1), 1150VA (cos φ = 0.5), 800W LED
- Contact: 1 × µ-contact, NO, tungsten pre-make
- Max. Inrush Current: 165A (20ms) / 800A (200µs)
- Channels: 1 (lighting)
- Detection Angle: 360°, ceiling mounting

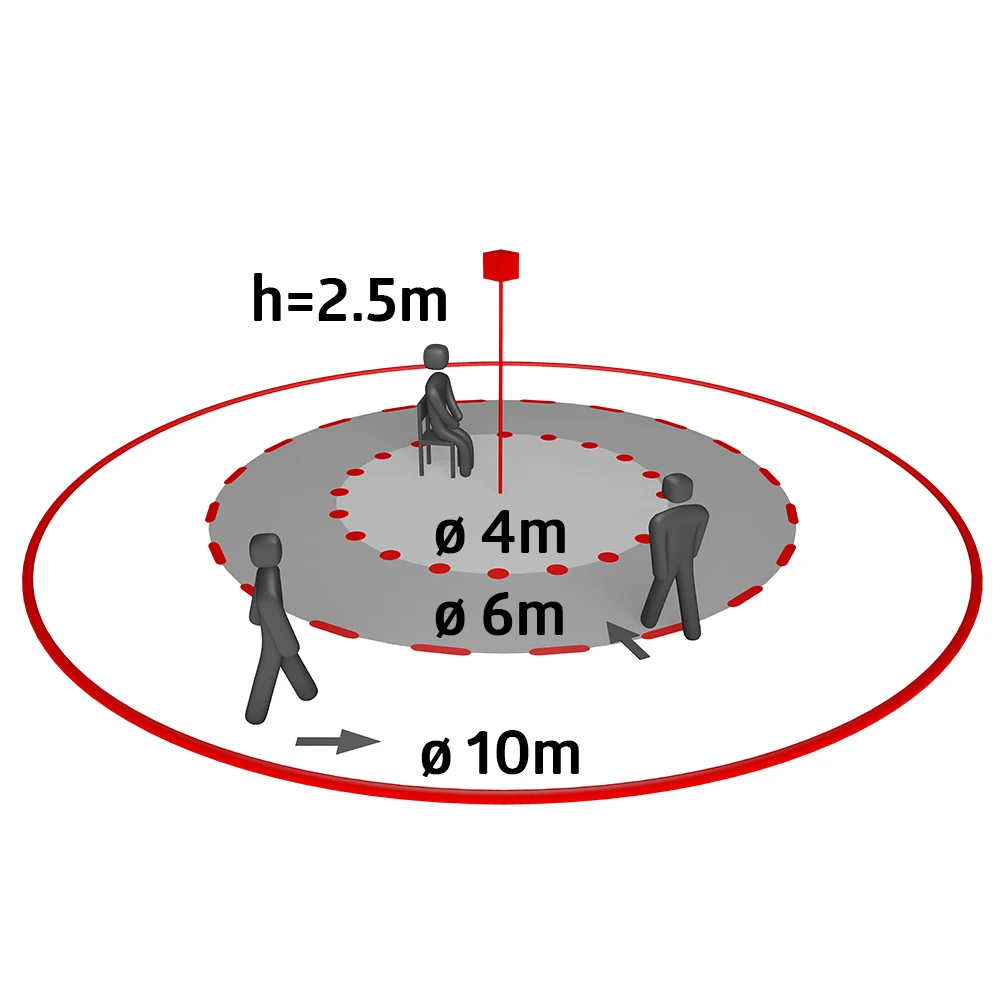

- Range: Ø10m across, Ø6m towards, Ø4m seated
- Monitored Area: 78m² at 2.5m height
- Mounting Height: 2m min. / 2.5m recommended / 5m max.
- Light Threshold: 10–2000 lux
- Follow-up Time: 15 seconds – 30 minutes
- IP Rating / Class: IP23 / Class II
- Impact Rating: IK04
- Ambient Temperature: −25°C to +50°C

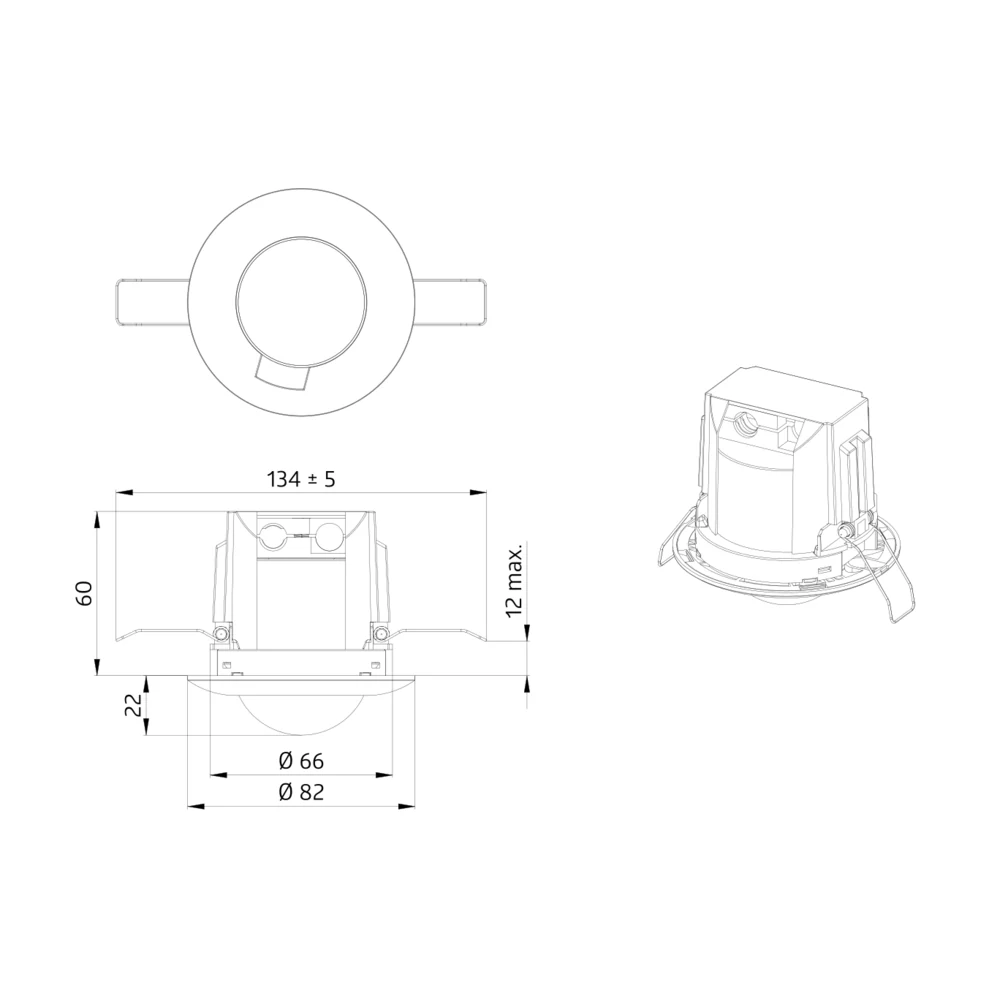

- Dimensions: Ø 83 × 81mm
- Housing: UV-resistant polycarbonate, white matt (similar to RAL 9010)
Typical applications: Corridors, staircases, toilets and equipment rooms.
Other mounting styles in the BEG Luxomat presence detector range: 92190, 92902.
