TP12AHS/100 – 12-Way Ryefield Three Phase Distribution Board for 12 x 100A Fuse Units

Product Code: TP12AHS/100 Category: ,

£1,588.80 inc VAT


  • One year full guarantee. Fourteen day no questions return.
  • Delivery £7.00 ex VAT
  • FREE delivery on orders over £120.
  • SSL secure transactions
  • Call us today for any advice

Product Description

TP12AHS/100 – 12-Way Ryefield Three-Phase Distribution Board for 12 x 100A Fuse Units

The TP12AHS/100 is a robust and reliable 12-way Ryefield three-phase distribution board designed to accommodate 12 x 100A fuse units, offering 12 usable single-phase ways with a three-phase supply. This distribution board is built for durability and efficiency, making it an ideal choice for various electrical installations.

Key Features:

  • Sturdy Construction: Fabricated from 18-gauge steel sheets, ensuring long-lasting durability and protection in demanding environments.
  • Secure Access: Features lift-off hinged covers with a padlock attachment and Multilock system, providing secure and easy access while enhancing safety.
  • Versatile Connections: Equipped with standard main brass clamps, adjustable to accept 25-120mm stranded conductors, offering installation flexibility.
  • User-Friendly Design: Includes plain removable top and bottom plates for easy customisation and cable management.
  • Wall-Mount Ready: Back cases are pre-drilled and embossed for straightforward wall mounting.
  • TPN Pattern Flexibility: Supports TPN patterns ranging from 6 to 36 fuseways spread across three phases, catering to various electrical configurations.
  • High Capacity: The busbar is rated at a maximum of 400A, ensuring reliable performance under high load conditions.
  • Compact Dimensions:
    • Height: 535mm
    • Width: 500mm
    • Depth: 180mm
  • Complete Solution: Supplied with 12 x 100A fuses, providing a ready-to-install solution right out of the box.

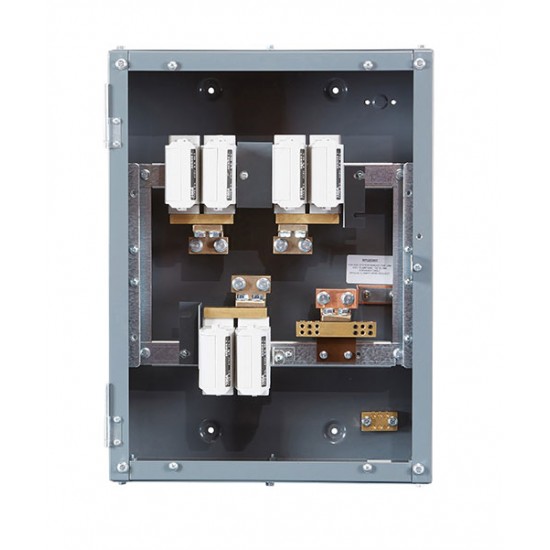

Please note: The image shown is for illustrative purposes only. Check the listed dimensions before purchasing.
