TP17AHS/100 – Ryefield Board 17 Ways with 100A Fuses
£2,322.67 inc VAT
- One year full guarantee. Fourteen day no questions return.
- Delivery £7.00 ex VAT
- FREE delivery on orders over £120.
- SSL secure transactions
- Call us today for any advice
Product Description
TP17AHS/100 – 17 Way Ryefield Board with 100A Fuses | Your Electrics
The TP17AHS/100 17 Way Ryefield Board with 100A fuses offers 17 usable single-phase ways with a three-phase supply. This robust and durable distribution board is ideal for high-capacity electrical distribution in commercial and industrial environments.
- Durable Construction: Cases fabricated from 1.2mm² steel sheets (approx. 18-gauge) for long-lasting durability in demanding environments.
- Security Features: Lift-off hinged covers with padlock attachment and Mul-T-Lock for added security.
- Adjustable Clamps: Standard main brass clamps adjustable to accept 25mm² to 120mm² stranded conductors.
- Flexible Installation: Plain removable top and bottom plates provided as standard for easy installation access.
- Wall Fixings: Back of the case pre-drilled and embossed for easy wall mounting.
- Busbar Capacity: Maximum busbar rating of 400A for reliable, high-capacity performance.
- Fuse Rating: Comes complete with 17 x 100A fuses for immediate use.
- Dimensions (HxWxD): 535mm x 680mm x 180mm. Please ensure the dimensions meet your requirements before purchase.
Technical Specifications:
- Number of Poles: Four-pole (TP+N)
- Rated Insulation Voltage: 660V
- Rated Operating Voltage: Max 415V
- Degree of Protection: IP40
- Housing Material: Steel, powder-coated for durability
- Fuse Inserts: Cylindrical design for compatibility with 100A fuses

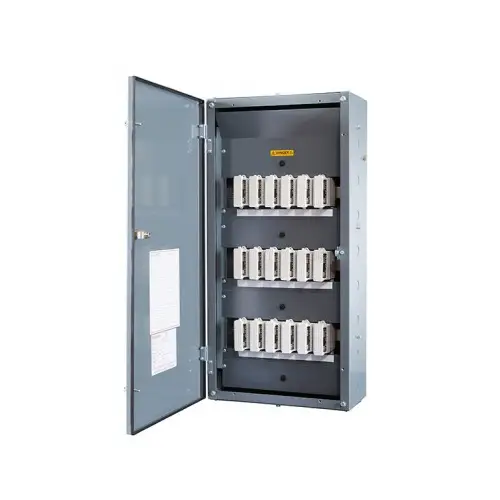

Note: The photo is for illustrative purposes only. Please check the product dimensions and specifications to ensure they meet your installation needs.
A Ryefield board is a distribution board manufactured by Ryefield Engineering, available through Your Electrics, ensuring safe and efficient power distribution in high-demand applications.
